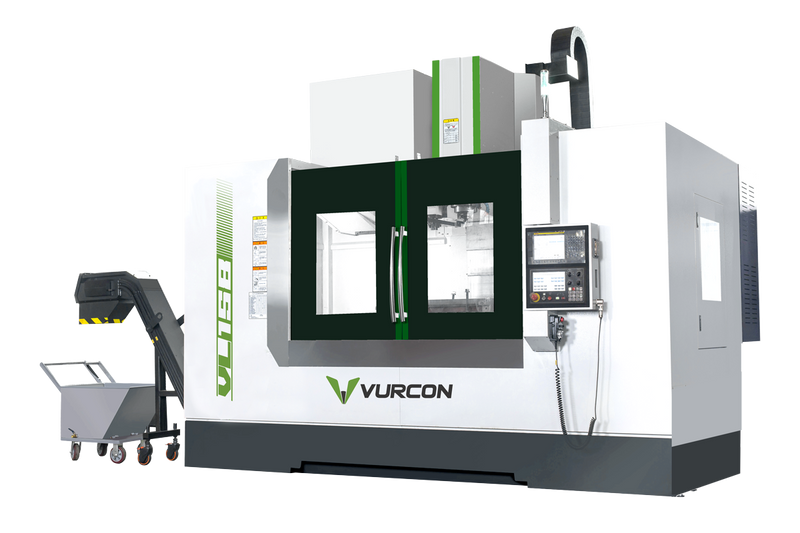

Vurcon VL-158 machining center
Physical characteristics
Ref.: VL158
Work table (WxL) | 850x1700 |
X/Y/Z axis travel | 1500/ 850/ 850 |
Speed range | 20 - 6000 |
Standard configuration
- Skids on the X/Y/Z axes
- Pretensioned ball screws
- Rigid threading
- Workpiece Cooling System
- Heat exchanger in the electrical panel
- Auto power off
- Complete fairing
- Oil collector guides
- Air seal on the spindle
- Automatic lubrication system
- RS232 interface
- Air gun
- electronic steering wheel
- Leveling plugs
- CE marking
Data sheet
Data sheet
Characteristics | ||
Brand | VURCON | |
---|---|---|
Work table (WxL) | mm | 850x1700 |
Control | FANUC 0i MF | |
X axis travel | mm | 1500 |
Y axis travel | mm | 850 |
Z axis travel | mm | 850 |

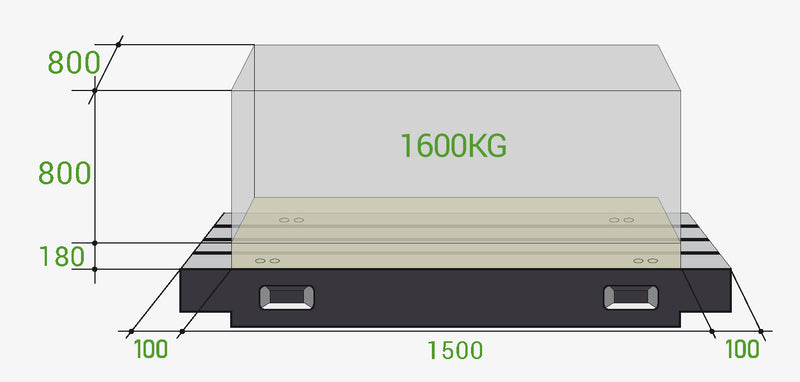

Max load admitted on the work table | kg | 1600 |
Spindle-table distance | mm | 120 - 970 |
T-slots | mm | 5-18-125 + 2-18-100 |
Distance between slots | mm | 125 + 100 |
Main spindle cone | BT50 | |
Column distance - spindle center | mm | 935 |
Speed range | rpm | 20 - 6000 |
Main engine power at S6 | kW | 18.5 |
Cone balancing | G1 | |
Spindle precision | mm | ±0.005 |
Dynamic precision | mm | ±0.007 |
Standard tool holder | MSA403 BT50 | |
X axis servomotor power | kW | 3 |
Y axis servomotor power | kW | 2 |
Z axis servomotor power | kW | 3 |
X axis rapid feed | m/min | 24 |
Y axis rapid feed | m/min | 24 |
Z axis rapid feed | m/min | fifteen |
Work progress | mm/min | 8000 |
Tool magazine type | Arm | |
Tool changer type | Random | |
Tool capacity | pc | 24 |
Day. max. of tools with adjacent tool | mm | 110 |
Max weight supported tool | kg | fifteen |
Max length of tool admitted | mm | 4.5 |
Tire consumption | kg | 6 - 8 |
Electrical consumption | kva | 35 |
Required power | 380V±10% 50Hz | |
Coolant pump flow | l/min | 40 |
Optimal ambient temperature range | º | 10 - 40 |
Optimum ambient humidity | % | 20 - 80 |
Fairing type | Complete | |
X/Y/Z positioning accuracy | mm | ±0.010 |
X/Y/Z repositioning precision | mm | ±0.005 |
Dimensions | mm | 4100+1400(chip extractor)×3100×3380 |
Weight | kg | 15800 |
