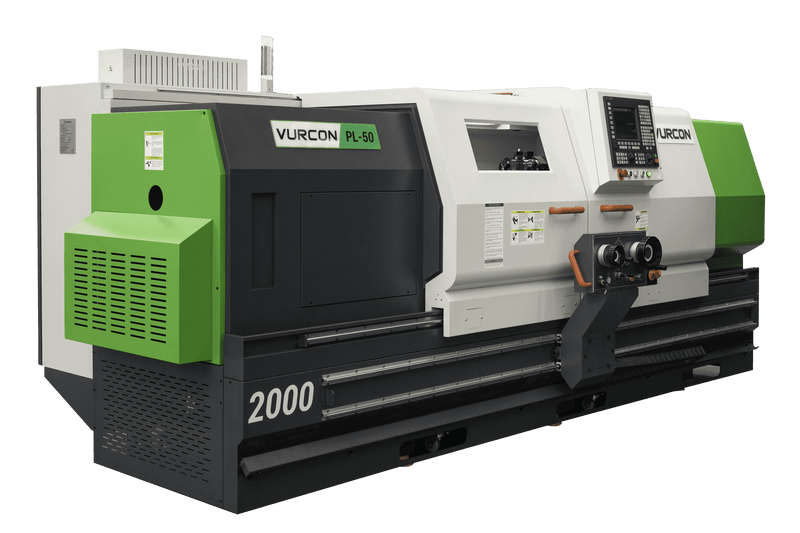

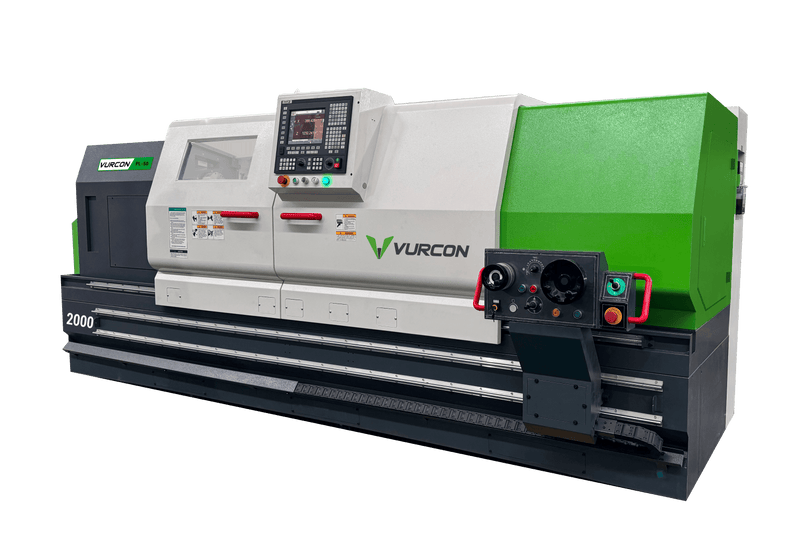

Vurcon PL-50x2000 parallel bed lathe
Physical characteristics
Ref.: PL50x2000
| Max. swing diameter over carriage | ø 290 |
| Main spindle speed | 30 - 3000 |
| Available controls | SIEMENS-FAGOR-FANUC |
Standard configuration

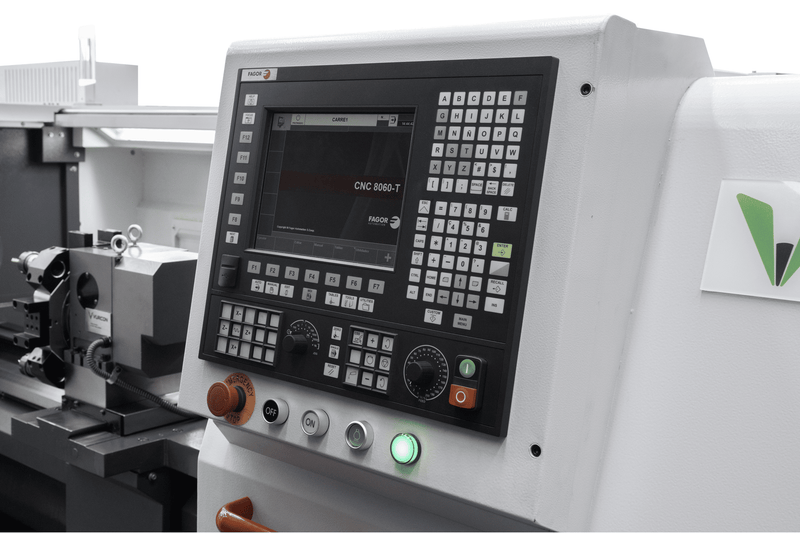

FAGOR 8060 ELITE-T-ICU
3-jaw chuck Ø250mm (PL50)
Fixed steady rest 20-130mm
Fixed steady rest 130-260mm
Mobile steady rest 20-80 mm
Mechanical handwheels
8-position turret (PL50)
Main motor 15 kW (PL50)
Manual tailstock/
Lubrication unit
Cooling system
Removable chip tray
Full enclosure
Data sheet
Data sheet
| Characteristics | ||
| Brand | VURCON | |
|---|---|---|
| Version | 2000 | |
| X axis travel | mm | 1000 |
| Z axis travel | mm | 2000 |
| X/Z axis rapid feeds | m/min | 6/ 8 |
| Max diameter turning | mm | ø 500 |
| Max diameter dump truck | mm | ø 280 |
| Day. max. horizontal turning 6 positions | mm | ø 350 |
| bar step | mm | ø 87 |
| Main spindle speed | rpm | 30 - 3000 |
| spindle nose | ISO702/A28 | |
| Turret capacity | 4/ 6 | |
| Square drive size | mm | 25x25 |
| Shank diameter hydraulic tailstock | mm | ø 80 |
| tailstock diameter | mm | ø 75 |
| Counterpoint route | mm | 150 |
| Tailstock morse taper | TM No. 5 | |
| Hydraulic tailstock cone | MT No. 3 | |
| Coolant pump power | kW | 0.15 |
| Dimensions (Length x width x height) | mm | 3700x1450x1670 |
| Weight | kg | 3600 |
