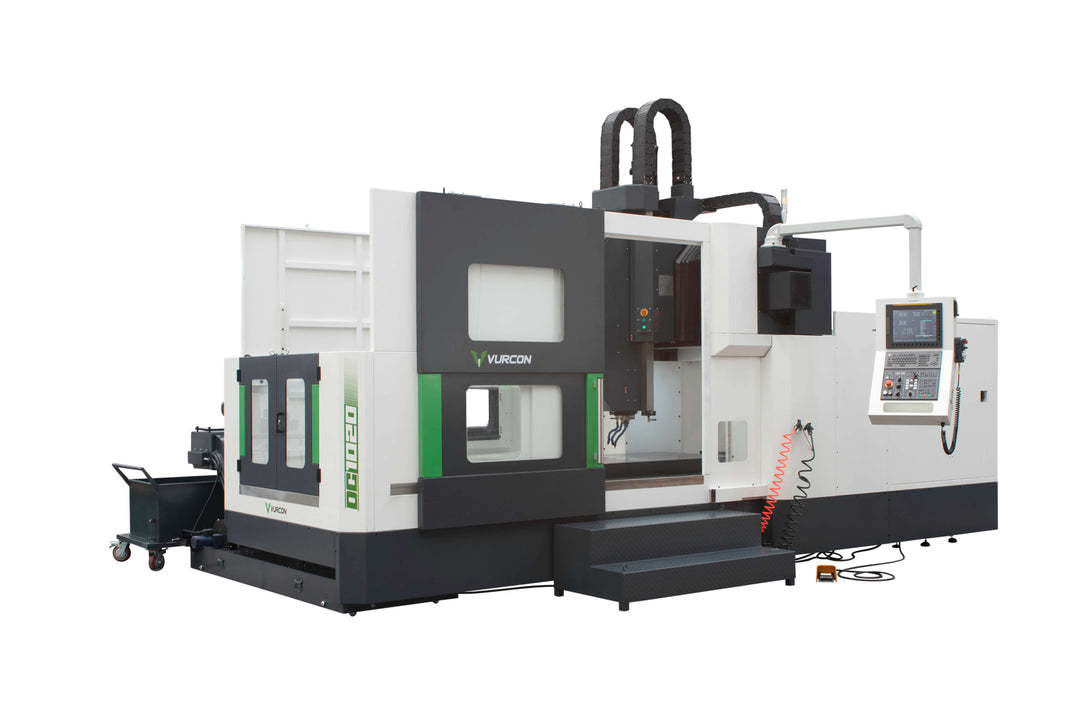

Gantry Type Machining Center Vurcon DC1020
Physical characteristics
Download Technical Sheet
Ref.: DC1020
| Worktable (WxL) | 1000 x 2000 |
| X/Y/Z axis travel | 2,050/ 1,100 / 630 mm |
| Speed range | 20 - 10000 |
Standard configuration
- X/Y/Z travel: 2,050/ 1,100 / 630 mm
- FANUC 0i-MF Plus type 2+MGI numerical control
- 15" touchscreen
- Electronic handwheel
- USB/CF/Ethernet communication interface
- Main spindle BT40 10000 RPM with oil cooler
- 24-position tool changer
- Coolant through spindle (CTS) 20 BAR, with additional sub-tank.
- Air conditioning in the electrical cabinet
- Chain chip conveyor and two screw evacuators
- Roller guides on X and Y axes, milled guide on Z axis
- Preloaded ball screws
- Workpiece cooling system
- Machining area blowing
- Air and coolant cleaning guns.
- Z-axis compensation system
- Automatic lubrication system
- Automatic shutdown
- Oil/coolant separator
- Chip sweeping
- Full enclosure
- CE marking
Data sheet
Technical Sheet
| Features | ||
| Brand | VURCON | |
|---|---|---|
| Worktable (WxL) | mm | 1000 x 2000 |
| Control | FANUC Bilp /8000 | |
| X-axis travel | mm | 2050 |
| Y-axis travel | mm | 1100 |
| Z-axis travel | mm | 600 |
| Max. load allowed on worktable | Kg | 6000 |
| Spindle-table distance | mm | 160 - 760 |
| T slots | mm | 7 slots of 22x125 |
| Distance between columns | mm | 1250 |
| Main spindle taper | BT40 | |
| Speed range | rpm | 20 - 10000 |
| Main motor power | kw | 11/15 |
| Main motor torque | Nm | 105/191 |
| Rapid traverse of X-axis | m/min | 20 |
| Rapid traverse of Y-axis | m/min | 20 |
| Rapid traverse of Z-axis | m/min | 10 |
| Tool changer type | Random | |
| Tool capacity | pc | 24 |
| Max. tool dia. with adjacent tool | mm | 78 |
| Max. dia. without adjacent tool | mm | 120 |
| Max. tool weight allowed | Kg | 8 |
| Max. tool length allowed | mm | 350 |
| Tool change time | s (T-T) | 3 |
| Repositioning accuracy | mm | ±0.025 |
| Positioning accuracy | mm | ±0.014 |
| Guideway dimensions (XYZ) | X axis: 2-45# roller type linear guideway Y axis: 2-45# roller type linear guideway Z axis: box type guideway |
|
| Ball screw diameter (XYZ) | mm | X axis: 63/20 Y axis: 50/12 Z axis: 50/20 |
| Electric consumption | Kva | 60 |
| Pneumatic consumption | kg/cm² | 6 |
| Required power | 380V±10% 50Hz | |
| Dimensions | mm | 6800x4500x4100 |
| Weight | Kg | 19000 |
